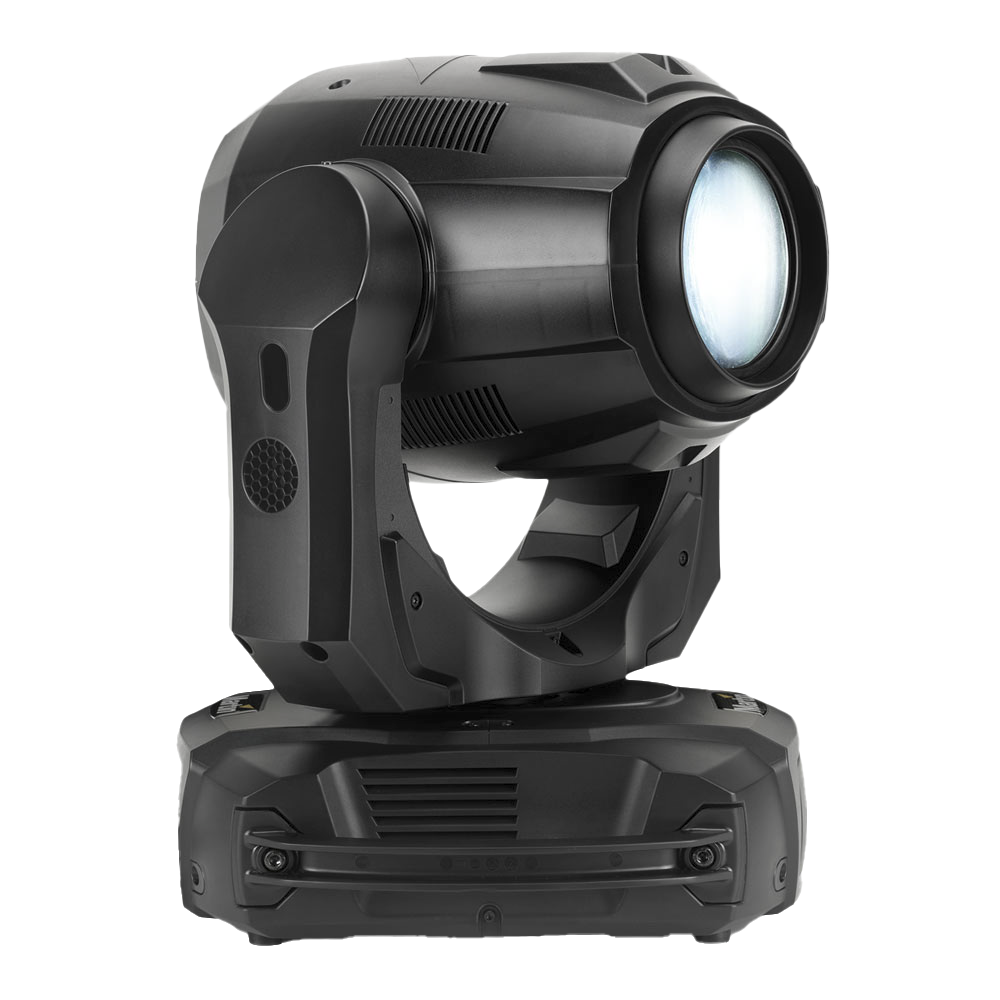

Martin Axiom Hybrid
Lumen:
16,000 lumens wide / 14,000 lumens narrow
Colour Temperature:
7,000K
Illuminance:
31,000,000 cd
Light Source:
440W short-arc discharge lamp
Zoom Range:
2° – 44°
Effects:
• CMYC color mixing (0–100%)
• Color wheel: 16 filters + open, indexing, continuous rotation
• 9 rotating gobos + open, indexing, shake, rotation
• 3-facet rotating prism with zoom effect
• 8-facet rotating prism with prism linear zoom
• 16 static gobos + open, gobo animation
• Frost filter (wash)
• Flat field projection with beam smoother
• Dimmer/shutter: 0–100%, strobe (2–10 Hz), pulse, blackout
• Color wheel: 16 filters + open, indexing, continuous rotation
• 9 rotating gobos + open, indexing, shake, rotation
• 3-facet rotating prism with zoom effect
• 8-facet rotating prism with prism linear zoom
• 16 static gobos + open, gobo animation
• Frost filter (wash)
• Flat field projection with beam smoother
• Dimmer/shutter: 0–100%, strobe (2–10 Hz), pulse, blackout
Protocols:
• DMX512-A
• RDM (ANSI/ESTA E1.20)
• Isolated RS-485 Receiver
• RDM (ANSI/ESTA E1.20)
• Isolated RS-485 Receiver
DMX Modes:
23 DMX Channels
Dimensions (W × H × D):
414 × 630 × 399 mm
Weight:
24.8 kg
Voltage:
100–240 V
Power Consumption:
600 W
Power Connector:
Neutrik PowerCON TRUE1
IP Rating:
IP20
