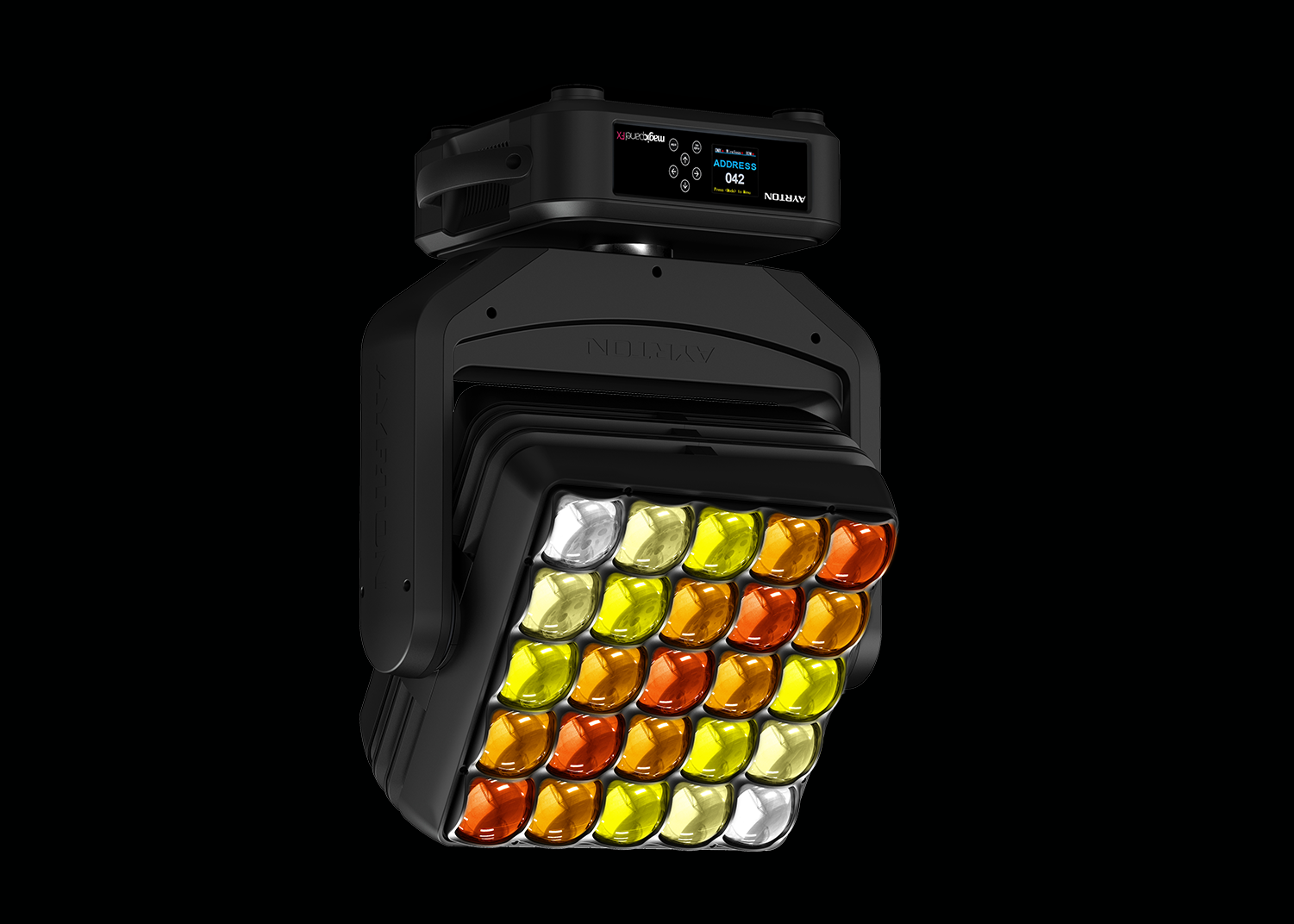

Ayrton MagicPanel-FX
Lumen:
13,500
Light Source:
25 × 1,000 lm RGBW High-Power LED
Zoom Range:
3.6° to 53°
Effects:
• 2D & 3D graphical effects
• Beam, wash, or matrix applications
• Built-in pattern speed/fade effects for scenic use
• Beam, wash, or matrix applications
• Built-in pattern speed/fade effects for scenic use
Protocols:
• 5-pin XLR male/female DMX
• DMX-512 (wired or wireless)
• DMX-RDM compatible
• Wireless CRMX (LumenRadio)
• etherCON RJ45 IN/OUT for ArtNet & sACN
• DMX-512 (wired or wireless)
• DMX-RDM compatible
• Wireless CRMX (LumenRadio)
• etherCON RJ45 IN/OUT for ArtNet & sACN
DMX Modes:
3 modes — 19 to 118 channels
Dimensions (W × H × D):
486 × 641 × 307 mm
Weight:
28.7 kg
Voltage:
110–240 V
Power Consumption:
1,000 W max
Power Connector:
PowerCON TRUE1 male
IP Rating:
IP20
